Sales portal 7-Plex Landroller

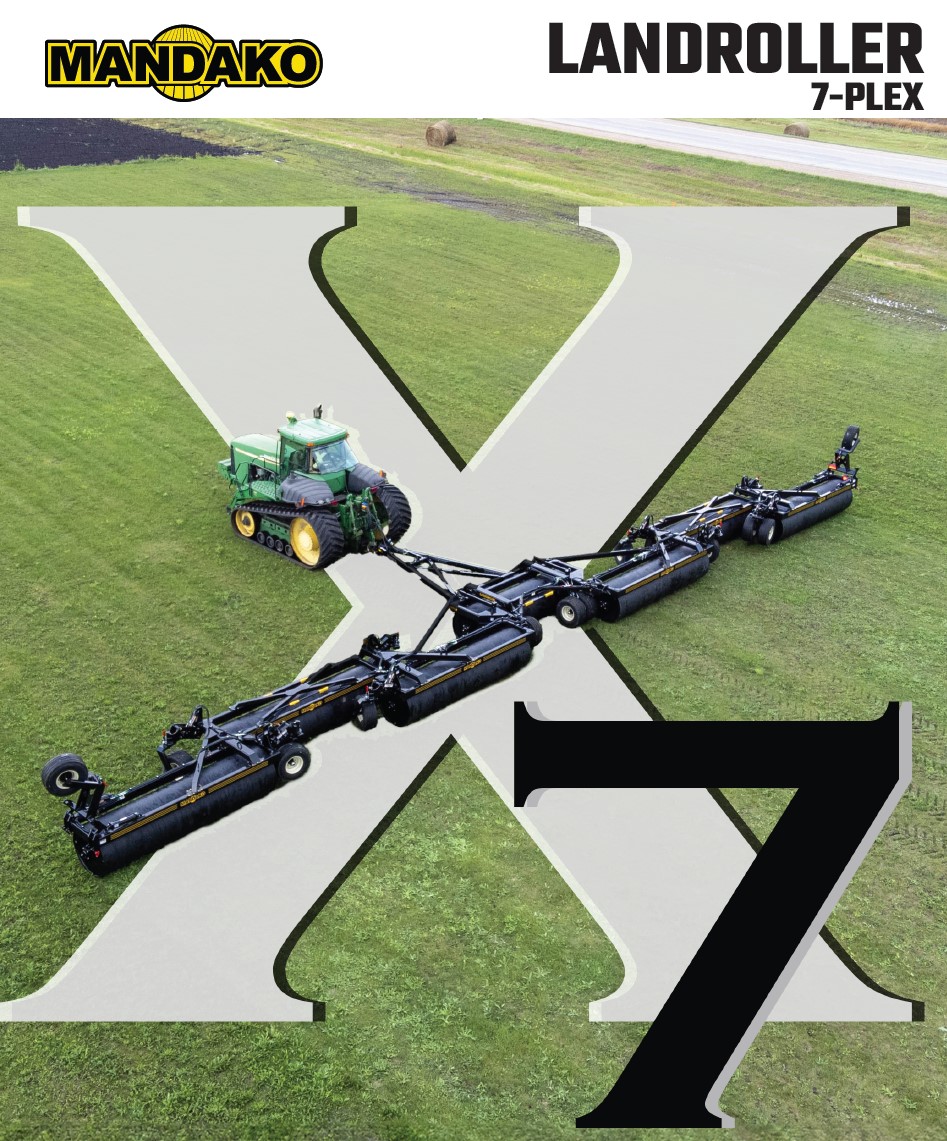

The 7-Plex Landroller, or X7, is the widest roller we build: five sizes from 88’ to 112’. At 112 feet and 6 mph it covers over 80 acres per hour, so a section that used to take a day takes a morning. Every size runs the same 42" x 5/8" drum and folds to 19’11” for the road.
What it does in the field
Rolling flattens clods, presses rocks and root balls back down and leaves the surface firm and even. Seed sits against soil instead of air, and at harvest the header runs low without picking up stone. Soybeans, cereals, hay and silage ground all get rolled, before seeding or after.
Drums and frame
Drums are 42” x 0.625” W on 3" heavy-duty shafts running in triple-lip sealed bearings. The frame is Grade 50 structural steel, North American. The X-frame ties the seven sections together so the load spreads through the machine in a turn instead of landing on one wing.
Folding and transport
Transport width is 19’11“ on all five sizes, which is often narrower than the tractor pulling it. Transport length runs from 67‘3” on the 88’ to 79‘3” on the 112’, and overall height is 6’ 6”. A fast-unfold axle, a hydraulic floating hitch, a hydraulic frame lock and a self-aligning wing lock handle the change from road to field; the hydraulic handles are colour-coded so nothing goes in the wrong port.
What it takes to pull one
Horsepower runs 440+ on the 88’ up to 560+ on the 112’, with four hydraulic ports and 5GPM (19LPM) at 2800 PSI. Minimum tractor weight goes from 39,600 lbs to 50,400 lbs. The roller itself weighs 55,620 lbs at 88’ and 63,395 lbs at 112’, which works out at 632 lbs per foot on the smallest and 566 lbs per foot on the largest.
Standard equipment
Hydraulic frame lock, self-aligning wing lock, high-clearance rear axle, LED lighting and a mechanical acre counter are standard. Tires are IF320/70R15. Mandako green or black finish.
Sizes and options
- Unit sizes: 88’, 94’, 100’, 106’ and 112’. Working width 88’1“ to 112’ 1“, working length 25‘3” on every size.
- Drum: 42” x 0.625” W (42" x 5/8"), 3" heavy-duty shaft, triple-lip sealed bearings.
- Frame: Grade 50 structural steel, X-frame design, North American steel.
- Weight: 55,620 lbs on the 88’ up to 63,395 lbs on the 112’; 632 to 566 lbs per foot.
- Horsepower: 440+, 470+, 500+, 530+ and 560+. Minimum tractor weight 39,600 to 50,400 lbs.
- Hydraulics: 4 ports, 5GPM (19LPM) at 2800 PSI, colour-coded handles, hydraulic floating hitch.
- Transport: 19’11“ wide on every size, 67‘3” to 79‘ 3” long, 6’ 6” high. Overall width in the field 89‘6” to 113‘ 6”.
- Standard: hydraulic frame lock, self-aligning wing lock, high-clearance rear axle, fast-unfold axle, LED lighting, mechanical acre counter.
- Tires: IF320/70R15.
- Colours: Mandako green or black.
- Narrower machines: 62’ to 85’ on the 5-Plex Landroller, 30’ to 50’ on the 3-Plex Landroller.
| Unit Size | 88’ | 94’ | 100’ | 106’ | 112’ |
| Transport Length (A) | 67‘3” | 70‘3” | 73‘3” | 76‘ 3” | 79‘ 3” |
| Transport Width (B) | 19’11“ | 19’11“ | 19’11“ | 19’11“ | 19’11“ |
| Overall Width (C) | 89‘6” | 95’6” | 101‘6” | 107‘6” | 113‘ 6” |
| Working Width (D) | 88’1“ | 94’1“ | 100’1“ | 106’1“ | 112’ 1“ |
| Working Length (F) | 25‘3” | 25‘3” | 25‘3” | 25‘3” | 25‘3” |
| Overall Height (E) | 6’ 6” | 6’ 6” | 6’ 6” | 6’ 6” | 6’ 6” |
| Weight Per Foot (lbs)* | 632 | 615 | 599 | 583 | 566 |
| Weight Overall (lbs)* | 55,620 | 57,855 | 59,900 | 61,800 | 63,395 |
| Hyd. Red. (Ports) | 4 | 4 | 4 | 4 | 4 |
| Hyd. Red. (@2800 PSI) | 5GPM (19LPM) | 5GPM (19LPM) | 5GPM (19LPM) | 5GPM (19LPM) | 5GPM (19LPM) |
| Horsepower Red. | 440+ | 470+ | 500+ | 530+ | 560+ |
| Min. Red. Tractor Weight | 39,600 | 42,300 | 45,000 | 47,700 | 50,400 |
| Tire Size | IF320/70R15 | IF320/70R15 | IF320/70R15 | IF320/70R15 | IF320/70R15 |
| Drum Size | 42” x 0.625” W | 42” x 0.625” W | 42” x 0.625” W | 42” x 0.625” W | 42” x 0.625” W |
440+ HP on the 88’, 470+ on the 94’, 500+ on the 100’, 530+ on the 106’ and 560+ on the 112’. Minimum tractor weight runs 39,600 lbs to 50,400 lbs. You also need four hydraulic ports and 5GPM (19LPM) at 2800 PSI.
Over 80 acres per hour with the 112’ at 6 mph. The narrower sizes scale down from there; working width is 88’1“ on the smallest.
19’11“ on all five sizes, 6’ 6” high, and 67‘3” to 79‘ 3” long depending on the unit. That is usually narrower than the tractor in front of it.
The tractor decides it more often than the acres do. The 88’ needs 440+ HP and a 39,600 lbs tractor; the 112’ needs 560+ HP and 50,400 lbs. Drums, frame and transport width are the same across all five.
If the tractor is under 440 HP, yes. The 5-Plex Landroller covers 62’ to 85’ and the 3-Plex 30’ to 50’, with the same drum and the same job, behind a smaller tractor.
A roller presses rocks and root balls into the ground and firms the whole surface; a harrow moves residue around on top of it. That is what puts seed against firm soil in the spring and keeps stone out of the header in the fall.
