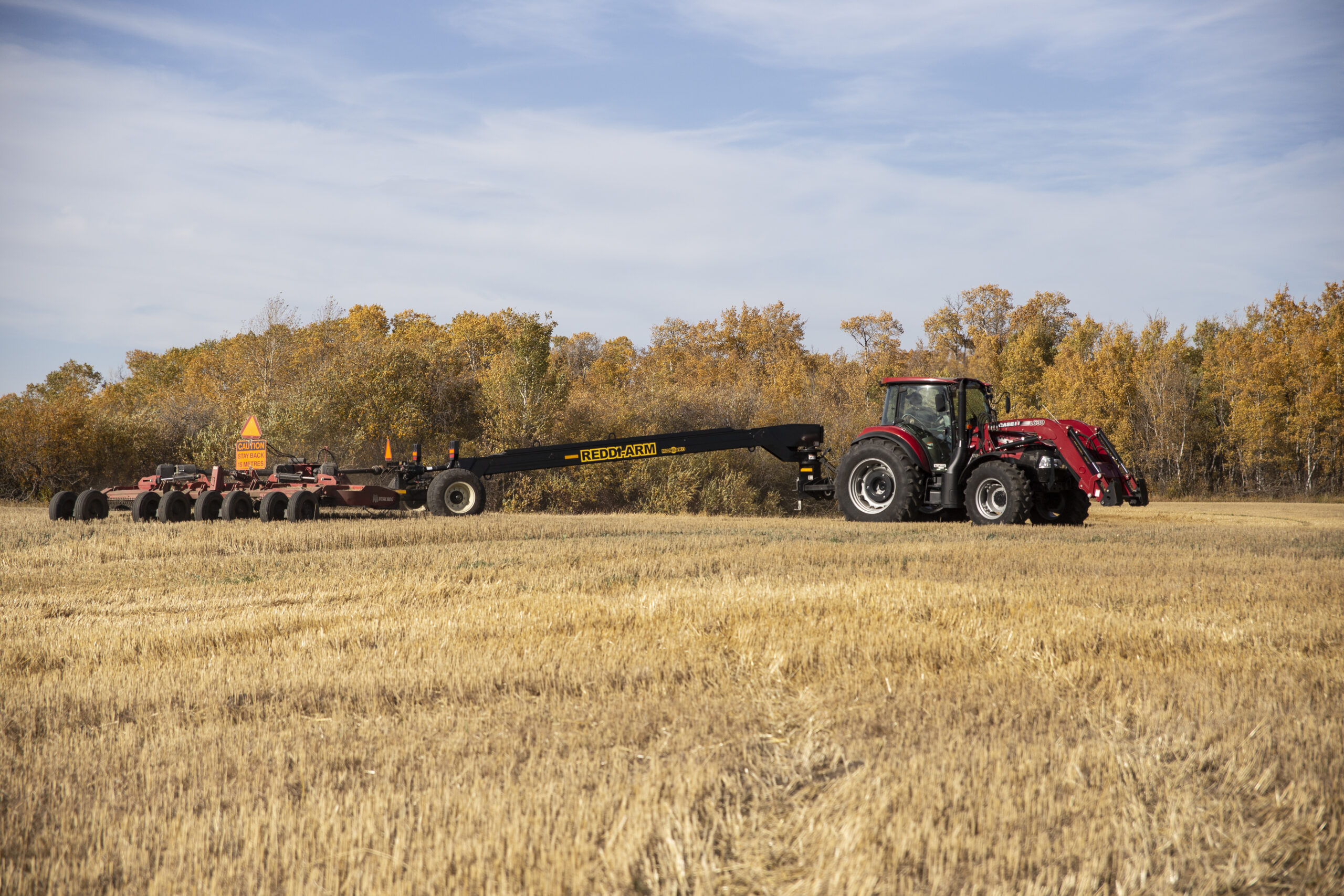

Sales portal Introducing the Revolutionary REDDI-ARM by Mandako
Elevate your mowing operations with the innovative REDDI-ARM, a cutting-edge attachment designed for precision, durability, and ease of use. Tailored to meet the demands of modern farming and landscaping, the REDDI-ARM transforms your rotary cutter into a more versatile and efficient tool, enabling you to reach new lengths in your cutting tasks.
Innovative Sloped Design
The REDDI-ARM’s unique sloped design serves dual purposes. Firstly, it eliminates the need for a third gearbox, reducing the number of moving parts and thereby minimizing potential downtime. Secondly, this thoughtful design provides the mower operator with a clear view of the cutter from the tractor cab, significantly reducing fatigue and enhancing control over the mowing operation.
Stable 3-Point Hookup
Featuring Mandako’s exclusive 3-point hookup, the REDDI-ARM ensures a stable and secure connection between the tractor and the arm. This innovative design virtually eliminates side drag on the tractor by stabilizing the arm with two points of connection instead of one. Compatible with both CAT 2 and CAT 3 configurations, and offering an optional 3-point-to-drawbar adapter, the REDDI-ARM caters to a wide range of tractors.
Built for the Toughest Conditions
Understanding the unpredictable nature of ditches and rough terrain, the REDDI-ARM is constructed with a heavy-duty 8-bolt hub and a 2.5-inch spindle diameter, paired with a 320/70R15 tire ready to take on any challenge. For those requiring even more durability, an upgrade to a 10-bolt hub with a 3-inch spindle diameter and a 440/55R18 tire is available. Damaged hubs/spindles can be easily replaced with just one bolt, ensuring you're always ready to mow.
Enhanced Maneuverability and Safety
The ability to swing the unit to the left or right side of the tractor and angle the unit 48 degrees in either direction makes navigating tight spaces effortless. This, combined with LED lighting, a Slow-Moving Vehicle sign in accordance with ASABE standards, and a steerable rear axle for easy hookup, maximizes both operator safety and convenience. The REDDI-ARM’s drawbar style hitch adapts to all cutters with a simple draw pin, making it universally compatible.
Specifications at a Glance:
- Unit Width: 10'
- Unit Length: 28' 8"
- Unit Height: 6' 2"
- Unit Weight: 3270 lbs (1483 kg)
- Hitch Weight: 1362 lbs (618 kg)
- Angling: 48° Left/Right
- Offset: 16' Left-Right
- Main Frame Dimensions: 12” x 8” x 0.250” W
- Tires: 320/70R15 / 440/55R18
- Hub/Spindle Assembly: 8-Bolt / 10-Bolt
- PTO Requirements: 1000 RPM
The REDDI-ARM by Mandako is not just an attachment; it’s a transformational tool for your farming and landscaping needs. Its design and functionality speak to the heart of efficiency, reducing downtime and enhancing operational visibility. With the REDDI-ARM, prepare to redefine what’s possible in mowing performance and productivity.
| Unit Width | 10' |
| Unit Length | 28' 8" |
| Unit Height | 6' 2" |
| Unit Weight | 3270 lbs (1483 kg) |
| Hitch Weight | 1362 lbs (618 kg) |
| Angling | 48° Left/Right |
| Offset | 16' Left-Right |
| Main Frame Dimensions | 12” x 8” x 0.250” W |
| Hitch Hookup Type | 3-Point (Cat 2 or Cat 3) |
| Tires | 320/70R15 / 440/55R18 |
| Hub/Spindle Assembly | 8-Bolt / 10-Bolt |
| Drivelines | Weasler (Cat 6) |
| Gearbox Ratio | 1:1 |
| PTO Requirements | 1000 RPM |
The sloped design of the Reddi-Arm serves a dual purpose. Firstly, it eliminates the need for a third gearbox, which means fewer moving parts and, consequently, less potential downtime due to repairs or maintenance. Secondly, this design provides the operator with a clear line of sight to the cutter directly from the tractor cab. This visibility not only reduces operator fatigue by making it easier to monitor and control the unit but also enhances the precision of mowing, as the operator can effectively see and manage the cutter's position in real-time.
Mandako's exclusive 3-point hookup system creates a more stable and secure connection between the tractor and the Reddi-Arm. Unlike traditional systems that may rely on a single point of connection, the Reddi-Arm's 3-point system stabilizes the arm using two points, significantly reducing side drag on the tractor. This stability is crucial for maintaining control and efficiency, especially when operating on uneven terrain or when maneuvering around obstacles. It ensures the arm remains firmly in place, providing consistent performance and reducing the physical strain on the tractor.
Absolutely, the Reddi-Arm is built to handle rough and challenging terrains with ease. Its heavy-duty construction includes an 8-bolt hub with a 2.5-inch spindle diameter and a standard 320/70R15 tire, designed to withstand the rigors of ditch mowing and other tough conditions. For those requiring an even more durable option, a 10-bolt hub with a 3-inch spindle diameter and a 440/55R18 tire upgrade is available. This "extreme" option further enhances the Reddi-Arm's capability in demanding environments. Additionally, if a hub or spindle does become damaged, they are designed for easy replacement, minimizing downtime and keeping you operational.
The Reddi-Arm incorporates several features to improve both safety and ease of use. With LED lighting and a Slow-Moving Vehicle sign that comply with ASABE standards, it ensures high visibility in all working conditions, enhancing safety for both the operator and passersby. The steerable rear axle, controlled by a hydraulic cylinder, simplifies the process of aligning the Reddi-Arm with the cutter for quick and effortless hookup. This ease of alignment, combined with the safety features, makes the Reddi-Arm not only efficient and straightforward to operate but also safe in a variety of working environments.
The Reddi-Arm is designed to operate with a 1000 RPM PTO, ensuring it has the power needed to drive the cutter effectively across various conditions. The drivelines are sourced from Weasler and are categorized as Cat 6, known for their durability and reliability. This combination of a high-performance PTO requirement and top-quality drivelines ensures that the Reddi-Arm delivers consistent, efficient power transmission for your mowing needs, regardless of the terrain or vegetation density.
